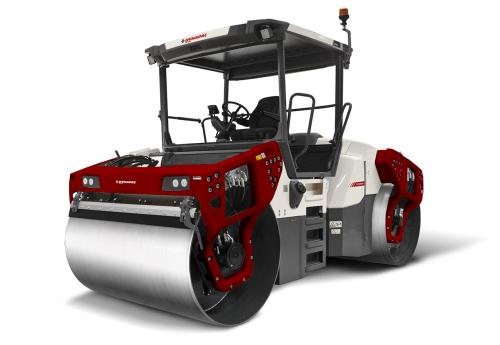

DYNAPAC CC4200 VI
Share
Description
TECHNICAL DATA
| Masses | |
| Max. operating mass | 13150Â kg |
|---|---|
| Operating mass (incl. ROPS) | 10000Â kg |
| Module mass (front/rear) | 5000 kg/ 5000 kg |
| Traction | |
| Speed range | 0-12 km/h |
| Vertical oscillation | ±7° |
| Max. theoretical gradeability | % |
| Compaction | |
| Centrifugal force (high/low amplitude) | 128 kN/84 kN |
| Nominal amplitude (high/low) | 0.8 mm/ 0.3 mm |
| Static linear load (front/rear) | 29.8 kg/cm/29.8 kg/cm |
| Vibration frequency (high/low amplitude) | 51 Hz/67 Hz |
| Water tank volume | 680 liters / (880 liters w. opt. watert.) |
| Water tank volume (front drum steering) | 740 liters |
| Engine | |
| Manufacturer/Model | Cummins QSF3.8 IV/T4f |
| Type | Water cooled turbo Diesel with After Cooler |
| Rated power, SAE J1995 | 97 kW (130 hp ) @ 2200 rpm |
| Fuel tank capacity | 180Â l |
| DEF tank capacity | 15Â l |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSF 3.8 IIIA/T3 |
| Type | Water cooled turbo Diesel with After Cooler |
| Rated power, SAE J1995 | 104 kW (140 hp ) @ 2200 rpm |
| Fuel tank capacity | 180Â l |
| Alternative Engine | |
| Manufacturer/Model | |
| Hydraulic system | |
| Vibration | Axial piston pumps (2) with variable displacement. Axial piston motors (2) with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe multidisc brake in both drums. |
